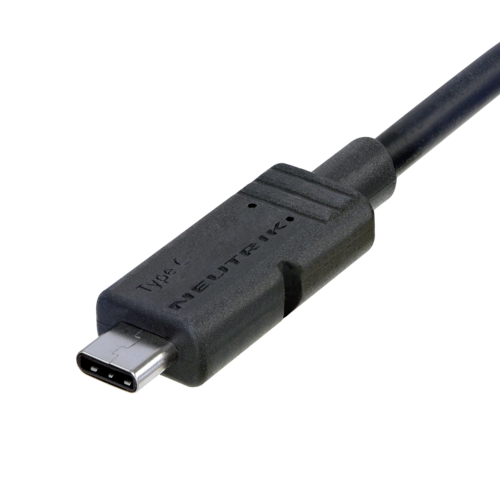

NMK-048U-*
The reversible USB Type-C cable with over molded flex relief and rugged cable fit and lock with NMC-* Chassis.
*The cables are available in 4m cable length.
Auswahl Themen
Features & Benefits
Downloads
Technische Informationen
Features & Benefits
- Guaranteed performance up to 480 Mbit/s (USB 2.0 compatibility)*
- Push Pull mating design provides secure locking system if mated with NMC-*
- Shielded connection – high noise immunity and EMI protection
- Mates with conventional USB-C receptacles
Downloads
Technical Information
| Produkte | |
| Title | NMK-048U-* |
| Description | PLEASE NOTE: Preference will vary depending on your additional hardware and software components and configurations. |
| Elektrisch | |
| Rated current per contact | 3 A |
| Rated voltage | 20 V |
| Insulation resistance | 10 MΩ |
| Insulation resistance | 3 Ω |
| Mechanische Daten | |
| Lifetime | 10'000 mating cycles |
| Locking force | 50 N |
| Locking device | Latch lock |
| Material | |
| Contact plating | Au |
| Contacts | Brass (CuZn37) |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Shell | TPE - Thermoplastic Elastomer |
| Umwelt | |
| Flammability | UL 94 HB |
| Transmission performance | USB 2.0 |
| Temperature range | -25 °C to +85 °C |
| Environmentally Compliant | RoHS and Halogen Free |
