PHASE OUT
direct replacement / successor: NAC3M-TRUE1-L
Verriegelbarer Kabelstecker für dicke Netzkabel mit Durchmessern von 10–16 mm. Zertifiziert nach EN/UL 60320-1 für den Gebrauch mit den Kabeltypen H07RN-F3G2.5 und SOOW 12/3 (USA). Schutzart IP65 und Strombelastbarkeit bis 16 A.
Die powerCON TRUE1 TOP Serie ist eine Steckvorrichtung für Außenanwendungen und darf unter Last und Spannung ein- und ausgesteckt werden.
| Question | Answer |
| Is the new cable entry patented? | There is a patent application in process which is related to the cable entry section. |
| How are the certifications different to the current version NAC3*X-W-TOP? | EN certification: Both versions are certified according to EN 60320-1. The new L-version however is certified for large cables as follows: H07RN-F 3G 2,5 mm² The old version is certified for cable types: H07RN-F 3G 1,5 mm² and H05VV-F 3G 1,0 - 2,5 mm² UL certification: The new L-version is certified according to UL 60320-1 for cables SOOW 12/3 and SOOW 14/3. The old version is certified according to UL 498. JET certification: Both versions are JET certified. |
| What are the mechanical differences to the current version NAC3*X-W-TOP? | The whole cable entry section had to be redesigned in order to: - To cover the large cable range (10 - 16mm) - To meet the standards requirement to prevent disassembling by hand - To improve the assembly process The housing and insert parts are the same |
| When is the IEC 60799 relevant? | This standard applies for "Cord Sets And Interconnection Cord Sets" and therefore covers cables to the mains and cables acting as power interconnections. |

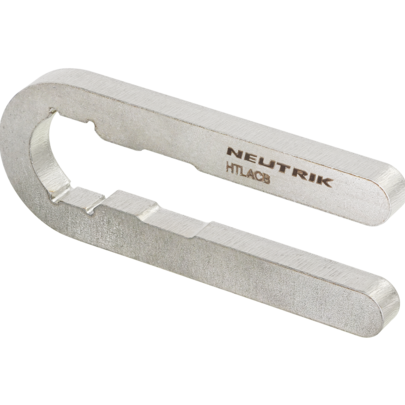

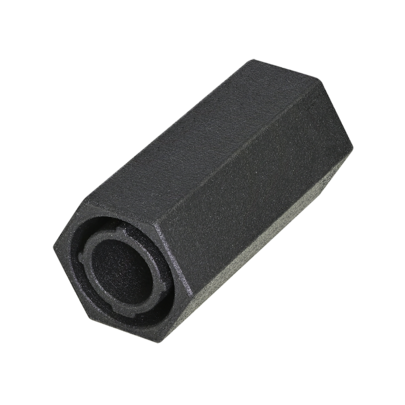

| Why is the bushing loose in one direction? | This is to meet the standards requirement to prevent disassembling by hand. In order to open the cable entry a special tool will be required. |
| Produkte | |
| Artikelnummer | NAC3MX-W-TOP-L |
| Serie | powerCON TRUE1 TOP |
| Elektrisch | |
| Durchschlagsfestigkeit | 2,8 kV AC |
| Isolationswiderstand | > 0,1 GΩ |
| Anzahl elektrischer Kontakte | 2 + Pe |
| Nennspannung | IEC EN 60320-1: 16 A 250 V AC |
| zertiziert mit Kabeltyp H07RN-F3G2.5 |
| Mechanische Daten | |
| Kabelaußendurchmesser | 10 – 16 mm |
| Lebensdauer | ca. 5.000 Steckzyklen |
| Leiterquerschnitt | 2,5 mm² |
| 12 AWG |
| Material | |
| Kontaktbeschichtung | Ag |
| Umwelt | |
| Temperatur | –30 bis +80 °C |
| Entflammbarkeit | UL94V-0 |
| Schutzart | IP65 |
| UV-Beständigkeit | UV-beständiges F1-Material |
